Flexible composite liners for kitchen extraction
VentilFlex-25 is a system of heat-resistant, corrosion-proof, flexible liners to mould to any duct shape, maximising the achieable diameter.
Get in touch to find your nearest supplier, receive technical information or to schedule a survey.
Fire rating standard
BSEN 13501: 1h integrity in case of internal fire, 45 min for external fire, and 1h for heat insulation.
Fire resistance test
BSEN 1366-1: Fire resistance tests for service installations – Ventilation ducts.
Corrosion-proof
Our liners have a high tolerance against corrosive condensation and cleaning agents between pH 3-10.
Cleaning & maintenance
Compatible with industry cleaning methods EN 1457-1: 2012.
25-year guarantee
Mature product with solid quality control and UK-wide supply network.
One-piece liner
Length from 1 up to 80 metres. Between 0.08 metre to 1 metre diameter.

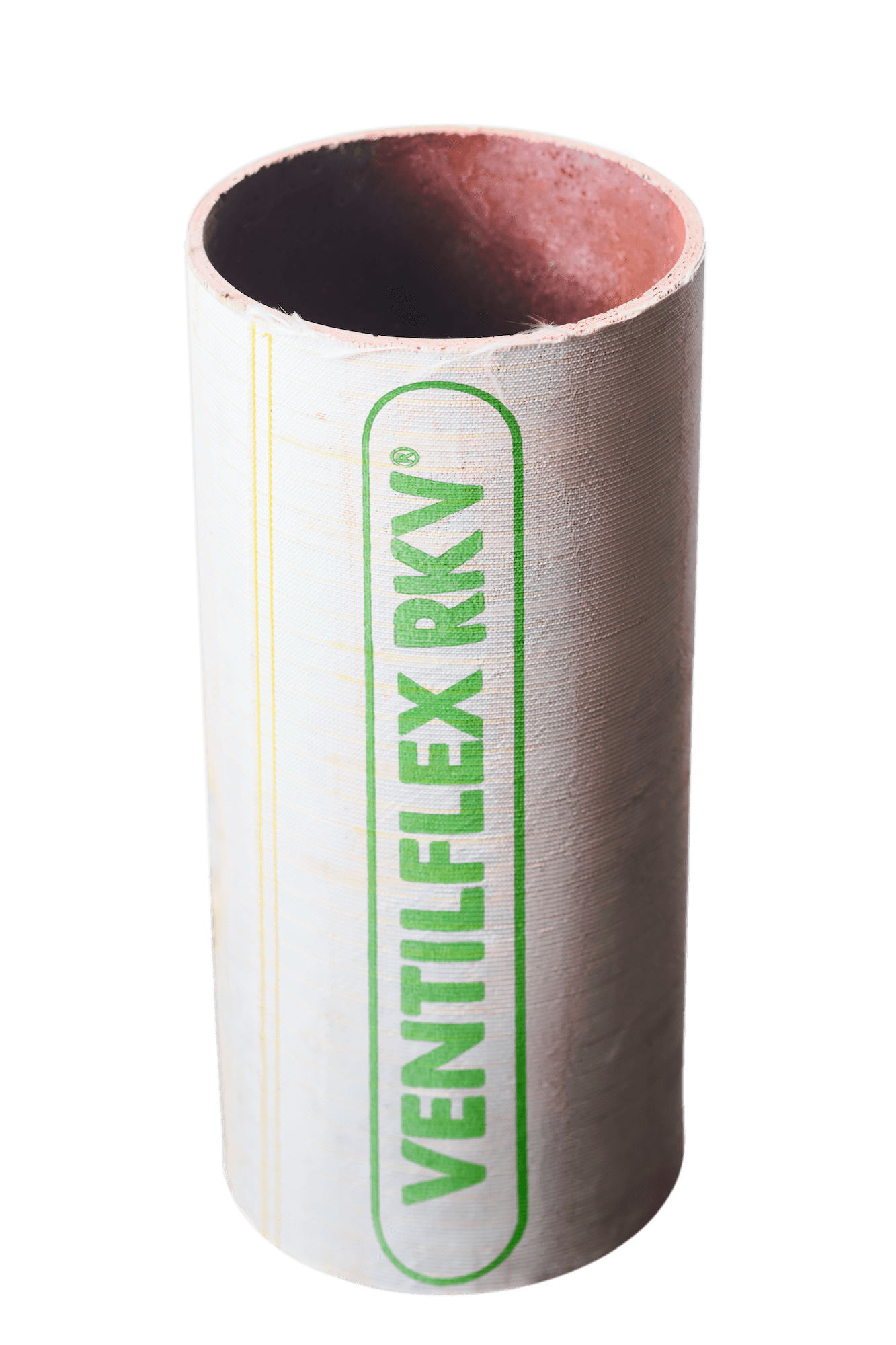

Composite Liner Structure
VentilFlex-25 RKV liners are comprised of 3 structural components, creating the final product.
- Thermoplastic film used to inflate the liner (removed after install)
- 4-6 layers of glass fibre reinforced with heat resistant resin
- Outer kevlar fabric to protect the tube and limit the achievable diameter
3-Step Installation
VentilFlex-25 RKV liners are supplied in a soft state. Trained installers use steam to harden and finish the liner.
- The soft pliable liner is positioned inside the duct
- Steam is used to inflate and cure the liner, fixing it in position
- The finished liner is smooth, air-tight and corrosion resistant
Case Studies
Large commercial projects where VentilFlex-25 RKV was chosen for its unique advantages.
Hospital Kitchen
Restaurant Kitchen
School Kitchen
Let Us Help You
Surveys and Testing
- Pressure tests
- Duct Leaks
- Duct Mapping
Book your nearest specialist to get a report.
Pricing and Quotes
Receive a quote based on your project requirements. Pricing will depend on liner size as determined by the duct dimensions and use requirements.
